Zinc Anodes

Mil-Spec Anodes

Weld on Hull Anodes

W-3

Tear Drop Anode measures 6” x 3” x 1-1/4” and has cast-in galvanized steel strap with two 3/8” x 5/8” oval shaped holes.

W6

Tear Drop Anode measures 9” x 3” x 1-1/4” and has cast-in galvanized steel strap with two 3/8” holes.

W4

Anode has cast-in galvanized steel strap with 3/8” x 5/8” oval shaped holes.
W5

Anode has cast-in galvanized steel strap with 3/8” x 5/8” oval shaped holes.

W-12    Zinc Anode has cast-in galvanized steel strap. W-12    A With cast-in aluminium strap. W-12    B With cast-in brass strap

W-24 Tapered Zinc Anode with two cast-in galvanized steelstraps

W-24 SQ     Rectanguler Zinc Anode with 2 cast-in galvanized steel straps W-24A-SQ   with 2 cast-in aluminium straps W-24B-SQ   with 2 cast-in brass straps

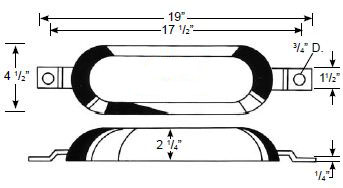

W-26 Zinc Anode with cast in galvanized steel straps

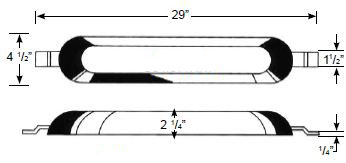

W-48 Zinc Anode with cast in galvanized steel straps



Zinc Plates

Bolt Anode Plate for Hull
Part           No. Length Width Thickness Weight
A-30 6-1/4" 2-3/4" 5/8" 2 lbs



Plain Zinc Plate Anodes

Part No Dimensions A
Width (Inches)		 Dimension B
Length (Inchies		 Dimension C

ZP-2 6 12 1/2
ZP-3 4 6 1/2
ZP-4 6 6 1/2
ZP-5 6 6 1
ZP-10 2 24 1/2
ZP-12 6 12 2-7/8
ZP-13 8 8 1
ZP-14 10 10 1
ZP-15 12 12 1
ZP-16 8 16 1/2
ZP-17 4 7 2
ZP-18 6 12 1
ZP-19 3 3 1/2
ZP-20 3 3 1
ZP-21 3 6 1/2
ZP-22 3 6 1
ZP-23 2 6 1-1/2
ZP-33 6-1/2 12-1/8 1-1/2
ZP-34 7 7 1
ZP-35 9 9 1

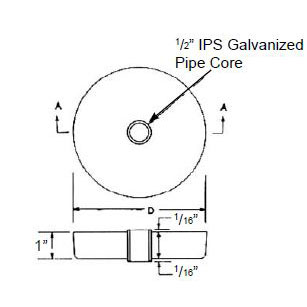

Condenser Zinc Anodes

Part No. Dimension (D)
Diameter (Inches		 Nom.Weight
(lbs)		 Core
CZA-2 2 1 A
CZA-3 3 2 A
CZA4 4 3 A
CZA-5 5 5 A
CZA-6 6 7 A
CZA-9 9 16 B (Not Shown)
CZA-11 11 24 B (Not Shown)
CZA-6x6 -- 9 A
