Brushes for Shafts

Scroll down for all brush options for use with flexible shafts.

Nylon Brush JRR211N

Nylon brushes are recommended for removing soft deposits such as mud and algae in straight, non-ferrous tubes such as copper, brass, plastic, etc. The brush should be equal to or 1/16” smaller than the tube ID. Sizes shown below are actual diameter of the brush

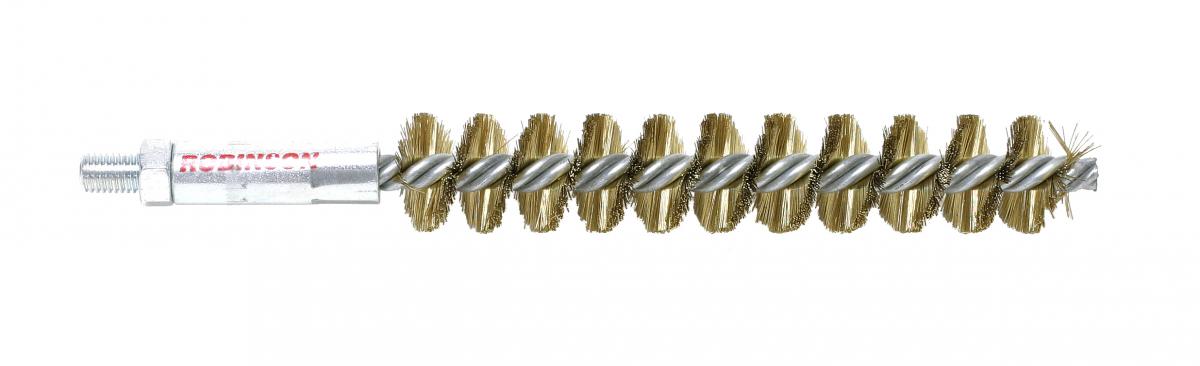

Brass Brush    JRRB200B

Brass brushes are recommended for removing soft deposits in straight, non-ferrous tubes such as copper, brass, plastic, etc. The brush should be equal to or 1/16” smaller than the tube ID. Sizes shown below are actual diameter of the brush

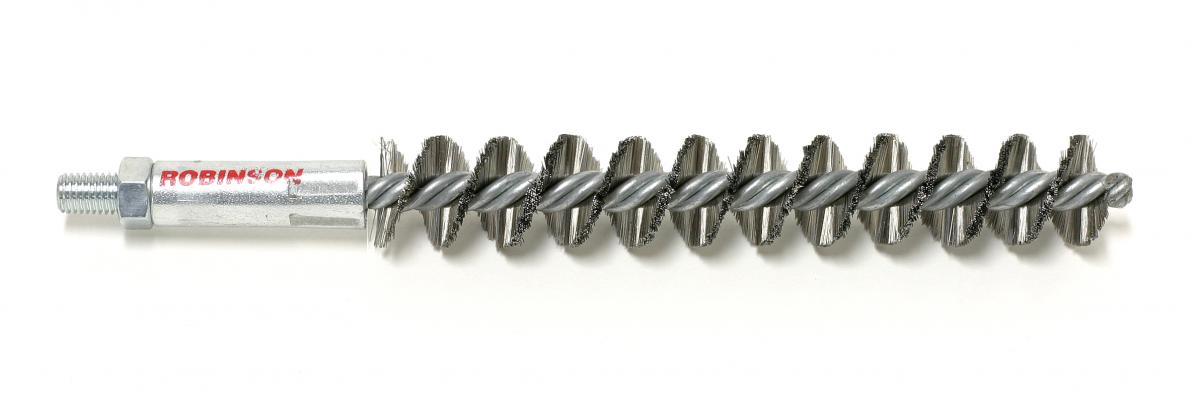

Stainless Steel Brush    JRRB210SS

Stainless steel brushes are recommended for removing soft deposits such as mud and algae in straight, non-ferrous tubes such as copper, brass, plastic, etc. The brush should be equal to or 1/16” smaller than the tube ID. Sizes shown below are actual brush diameters.



Part Number

Brush Dia.

Thread Size

Material

In.

MM

JRRB211N14

1/4"

6.4

8-32

Nylon

JRRB211N516

5/16"

7.9

8-32

Nylon

JRRB211N38

3/8"

9.5

8-32

Nylon

JRRB211N716

7/16"

11.1

1/4 - 28

Nylon

JRRB211N12

1/2"

12.7

1/4 - 28

Nylon

JRRB211N916

9/16"

14.3

1/4 - 28

Nylon

JRRB211N58

5/8"

15.9

1/4 - 28

Nylon

JRRB211N1116

11/16"

17.5

1/4 - 28

Nylon

JRRB211N34

3/4"

19.1

1/4 - 28

Nylon

JRRB211N1316

13/16"

20.6

1/4 - 28

Nylon

JRRB211N78

7/8"

22.2

1/4 - 28

Nylon

JRRB211N1516

15/16"

23.8

1/4 - 28

Nylon

JRRB211N1000

1"

25.4

1/4 - 28

Nylon

JRRB200B14

1/4"

6.4

8-32

Brass

JRRB200B516

5/16"

7.9

8-32

Brass

JRRB200B38

3/8"

9.5

8-32

Brass

JRRB200B716

7/16"

11.1

1/4 - 28

Brass

JRRB200B12

1/2"

12.7

1/4 - 28

Brass

JRRB200B916

9/16"

14.3

1/4 - 28

Brass

JRRB200B58

5/8"

15.9

1/4 - 28

Brass

JRRB200B1116

11/16"

17.5

1/4 - 28

Brass

JRRB200B34

3/4"

19.1

1/4 - 28

Brass

JRRB200B1316

13/16"

20.6

1/4 - 28

Brass

JRRB200B78

7/8"

22.2

1/4 - 28

Brass

JRRB200B1516

15/16"

23.8

1/4 - 28

Brass

JRRB200B1000

1"

25.4

1/4 - 28

Brass

JRRB210SS14

1/4"

6.4

8-32

Stainless Steel

JRRB210SS516

5/16"

7.9

8-32

Stainless Steel

JRRB210SS38

3/8"

9.5

8-32

Stainless Steel

JRRB210SS716

7/16"

11.1

1/4 - 28

Stainless Steel

JRRB210SS12

1/2"

12.7

1/4 - 28

Stainless Steel

JRRB210SS916

9/16"

14.3

1/4 - 28

Stainless Steel

JRRB210SS58

5/8"

15.9

1/4 - 28

Stainless Steel

JRRB210SS1116

11/16"

17.5

1/4 - 28

Stainless Steel

JRRB210SS34

3/4"

19.1

1/4 - 28

Stainless Steel

JRRB210SS1316

13/16"

20.6

1/4 - 28

Stainless Steel

JRRB210SS78

7/8"

22.2

1/4 - 28

Stainless Steel

JRRB210SS1516

15/16"

23.8

1/4 - 28

Stainless Steel

JRRB210SS1000

1"

25.4

1/4 - 28

Stainless Steel



Spin Grit Brush   JRRBSG



Spin Grit brushes are recommended for removing soft and light scale deposits in straight, ferrous and non-ferrous tubes. The abrasive impregnated nylon bristles of this brush clean and polish tubes in one step. Unlike regular spiral brushes the Spin Grit brush is designed to be oversized in the tube so the bristles lay over, putting the abrasive in contact with the tube wall.



Part No.

Brush Dia.

In.

MM

JRRBSG375

3/8"

9.5

JRRBSG50

1/2"

12.7

JRRBSG562

9/16"

14.3

JRRBSG625

5/8"

15.9

JRRBSG687

11/16"

17.5

JRRBSG750

3/4"

19.1

JRRBSG812

13/16"

20.6

JRRBSG875

7/8"

22.2

JRRBSG937

15/16"

23.8

JRRBSG1000

1"

25.4

JRRBSG1125

1-1/8"

28.5




Dual Diameter Spin Grit Brush    JRRBTSG



Dual Diameter Spin Grit brushes are recommended for removing soft and light scale deposits in straight enhanced condenser tubes. The smaller diameter stands stiff and cleans the grooves while the longer bristles lay flat to clean the large areas between the grooves. The small diameter of the brush should match the tube ID.

Part Number

Small End

Large End

JRRBTSG500

1/2”

12.7 mm

3/4”

19.1 mm

JRRBTSG625

5/8”

15.9 mm

1”

25.4 mm

JRRBTSG750

3/4”

19.1 mm

1-1/8”

28.6 mm

JRRBTSG1000

1”

25.4 mm

1-3/8”

34.9 mm

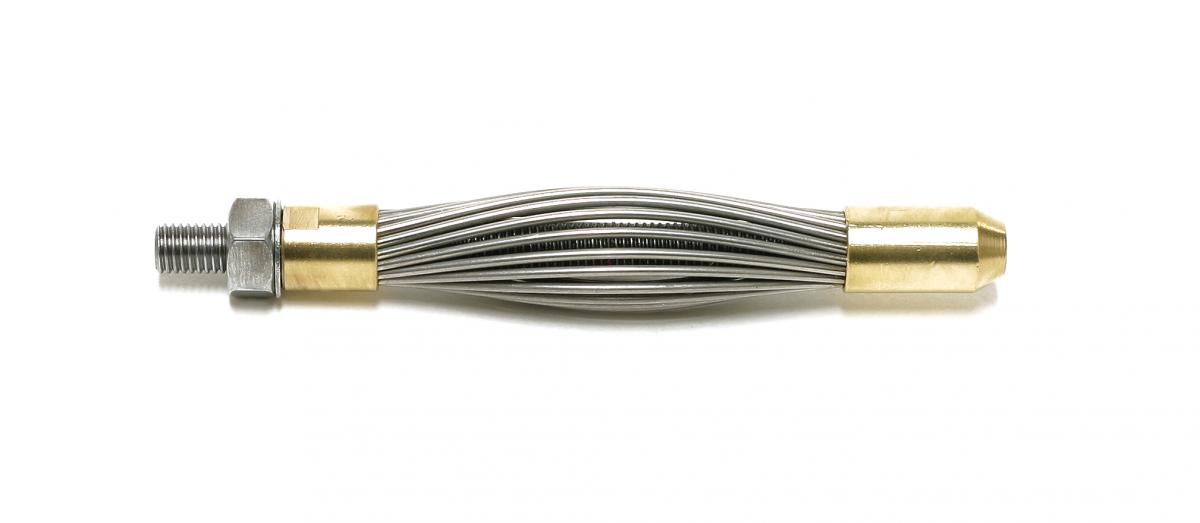

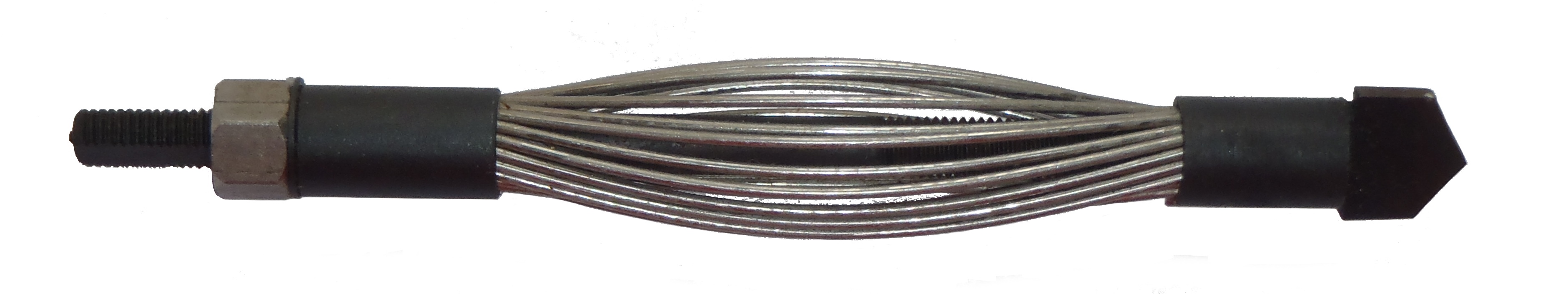

Cutting & Buffing drill tip






*with drill tip
Adjustable Cutting and Buffing tools are recommended for removing light to medium scale deposits in straight, ferrous and non-ferrous tubes. The tool is adjustable to fit the tubes ID or adjust for gradually cutting away harder deposits. This tool can also be used for polishing tubes after removal of deposits. Replacement blades are available.
*Tool also offered with a drill tip, add DT to the end of the part number.

Part Number

Adjustable Range

Thread

Replacement Blades

JRRABT203

5/16” – 3/8”

7.9 – 9.5 mm

8-32 Male

JRR-RB207

JRRABT204

3/8” – 1/2”

9.5 – 12.7 mm

8-32 Male

JRR-RB207

JRRABT205

1/2” – 5/8”

12.7 – 15.9 mm

1/4-28 Male

JRR-RB208

JRRABT206

5/8” – 1”

15.9 – 25.4 mm

1/4-28 Male

JRR-RB209

JRRABT13

1”-3”

25.4 – 76.2

1/4-28 Male

JRR-RB10

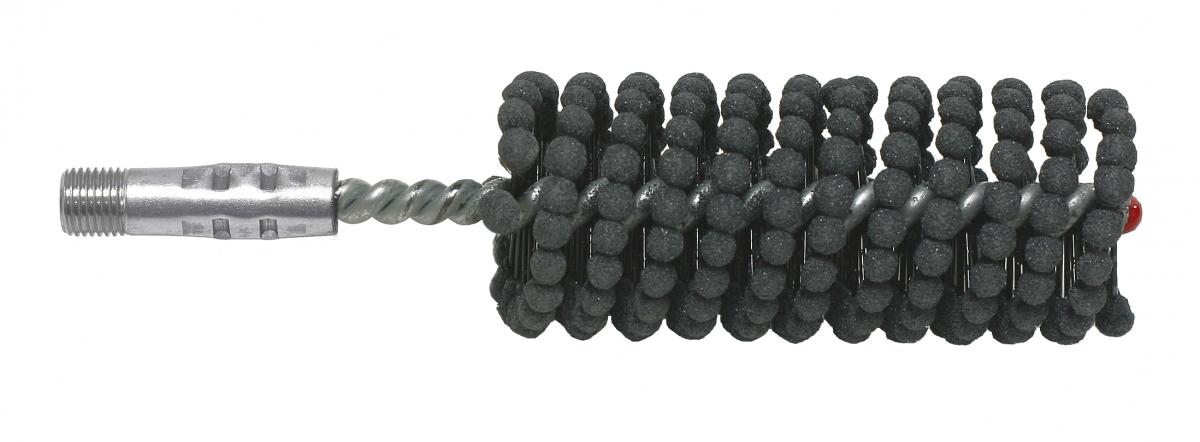

Abrasive Tool    JRRFH



ROBINSON’s Abrasive tool is recommended for cleaning straight, ferrous tubes. Silicon carbide balls at the end of the twisted wires allow the abrasive tool to clean as well as polish the inside of tubes. This tool has a 1/4-28 male thread.



Part No.

Brush Dia.

In.

MM

JRRFH500

1/2"

12.7

JRRFH562

9/16"

14.3

JRRFH625

5/8"

15.9

JRRFH687

11/16"

17.5

JRRFH750

3/4"

19.1

JRRFH875

7/8"

22.2

JRRFH1000

1"

25.4
